Part 3: Symplectic Integration - Geometry Over Accuracy

Learning Outcomes¶

By the end of this section, you will be able to:

• Explain Hamiltonian mechanics and phase space structure

• Prove symplecticity of leapfrog/Verlet methods

• Understand modified Hamiltonians and bounded energy error

• Implement symplectic integrators for conservative systems

• Choose between accuracy and structure preservation

The Fundamental Insight¶

Instead of minimizing local truncation error, symplectic integrators preserve geometric properties:

1. Phase space volume (Liouville’s theorem)

2. Time reversibility

3. Bounded energy error (oscillates but doesn’t grow)

4. Poincaré invariants (action integrals)

The profound trade-off: symplectic methods may be less accurate locally but maintain qualitative correctness globally.

Hamiltonian Mechanics Refresher¶

Before diving into symplectic integration, let’s recall the Hamiltonian formulation of mechanics. For a system with positions $q$ and momenta $p$, the Hamiltonian $H(q,p,t)$ represents total energy:

where $T(p)$ is kinetic energy and $V(q)$ is potential energy.

For a particle of mass $m$ in potential $V(q)$:

Hamilton’s equations govern the evolution:

These equations have remarkable properties:

• Energy conservation: $\frac{dH}{dt} = 0$ for time-independent $H$

• Phase space volume preservation: Liouville’s theorem

• Symplectic structure: The flow preserves a geometric structure

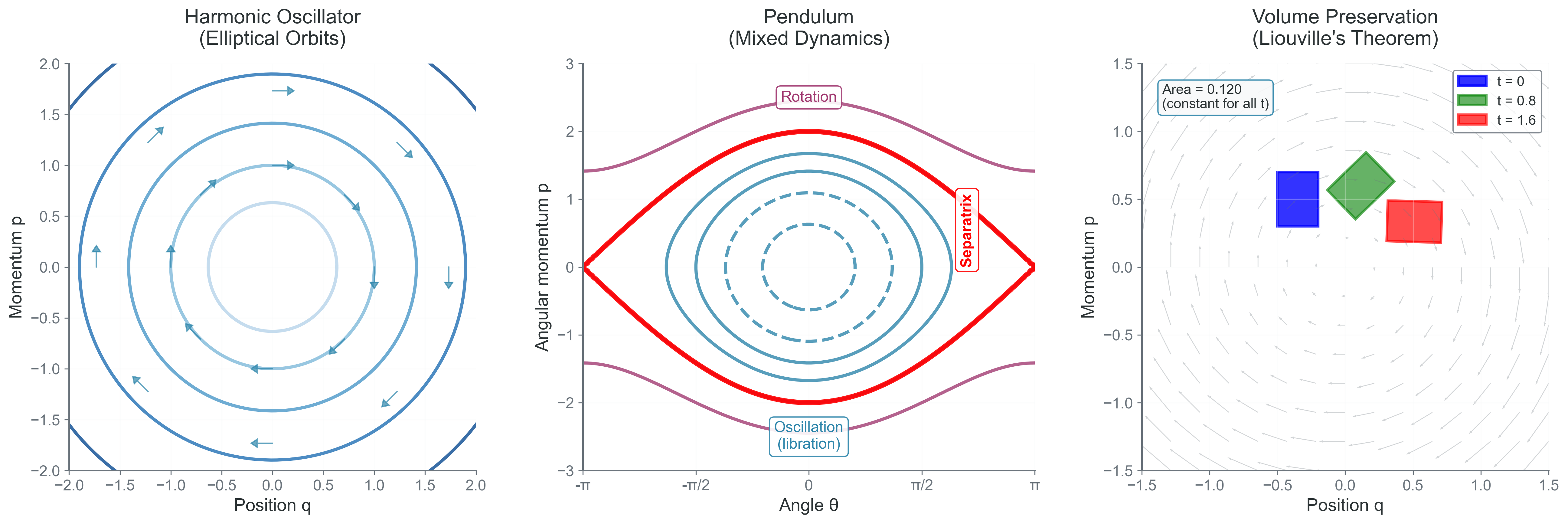

The Phase Space Perspective¶

In phase space, each point $(q,p)$ represents a complete state of the system. Trajectories follow contours of constant energy $H = E$.

Liouville’s Theorem¶

Liouville’s theorem states that phase space volume is preserved under Hamiltonian flow. Mathematically, for a volume element $dV = dq\,dp$:

This is equivalent to saying the flow is incompressible. Standard numerical methods violate this theorem! They artificially compress or expand phase space, leading to systematic errors.

The Leapfrog/Verlet Method¶

The leapfrog method (also called Verlet or Störmer-Verlet) staggers position and velocity updates to preserve symplectic structure.

The Algorithm¶

For a Hamiltonian $H(q,p) = T(p) + V(q)$ where $T(p) = p^2/(2m)$:

Why “Leapfrog”?¶

Positions and momenta “leapfrog” over each other in time:

Time:     t₀    t₁/₂    t₁    t₃/₂    t₂
          |      |      |      |      |
Position: q₀            q₁            q₂
Momentum:       p₁/₂          p₃/₂

This staggering is key to symplecticity!

Implementation Tips for Your N-body Project¶

Proof of Symplecticity¶

A transformation is symplectic if it preserves the symplectic 2-form. We’ll prove leapfrog is symplectic by showing each sub-step preserves the symplectic structure.

Step 1: Analyze Each Sub-step¶

The leapfrog map can be decomposed into three shear transformations:

1. First kick: $(q,p) \mapsto (q, p + \frac{h}{2}F(q))$

2. Drift: $(q,p) \mapsto (q + \frac{h}{m}p, p)$

3. Second kick: $(q,p) \mapsto (q, p + \frac{h}{2}F(q))$

Step 2: Show Each Shear is Symplectic¶

For the momentum kick $(q,p) \mapsto (q, p - \frac{h}{2}\nabla V(q))$:

The Jacobian is:

Verify the symplectic condition:

Similarly for the drift step.

Step 3: Composition Preserves Symplecticity¶

Since the composition of symplectic maps is symplectic:

is symplectic. Therefore, leapfrog preserves phase space structure exactly!

Volume Preservation¶

The determinant of each Jacobian is 1:

Phase space volume is exactly preserved, satisfying Liouville’s theorem.

The Modified Hamiltonian¶

Leapfrog doesn’t conserve the original Hamiltonian $H$ exactly. Instead, it exactly conserves a modified Hamiltonian:

The correction terms can be computed using backward error analysis. For the harmonic oscillator with $H = \frac{1}{2}(p^2 + \omega^2 q^2)$:

where $\{f,g\} = \frac{\partial f}{\partial q}\frac{\partial g}{\partial p} - \frac{\partial f}{\partial p}\frac{\partial g}{\partial q}$ is the Poisson bracket.

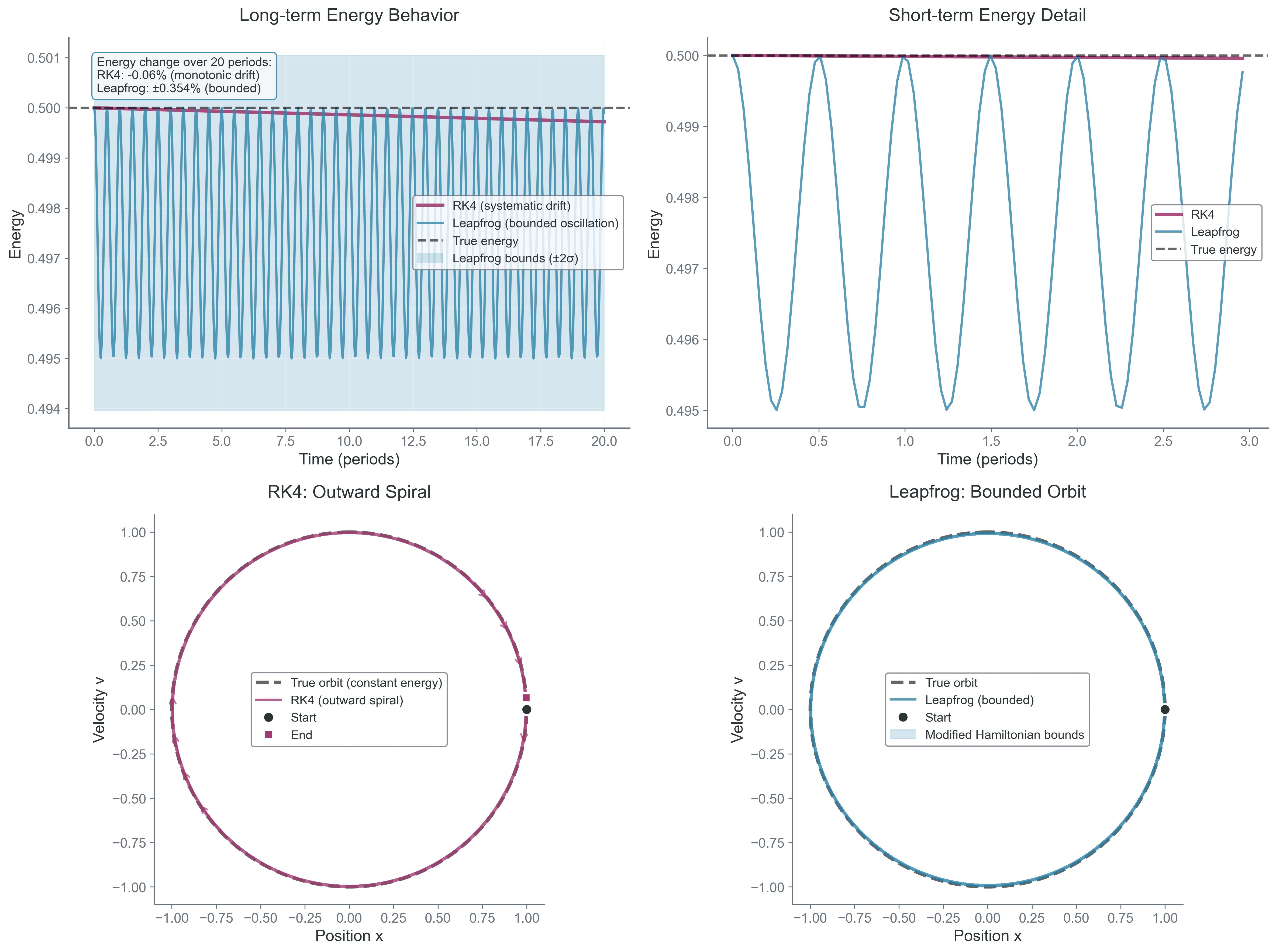

The key insight: $\tilde{H} - H = O(h^2)$ is bounded! Energy oscillates within a band but never drifts away.

Higher-Order Symplectic Methods¶

Yoshida’s Fourth-Order Method¶

By composing leapfrog steps with carefully chosen timesteps, we can achieve higher-order accuracy while maintaining symplecticity. The coefficients come from solving order conditions to eliminate $O(h^3)$ errors.

The strange values involving $2^{1/3}$ arise from the algebraic constraints of maintaining symplecticity while achieving fourth-order accuracy:

The algorithm combines leapfrog steps with timesteps $c_i h$ where:

Forest-Ruth Method¶

An alternative fourth-order symplectic integrator with different stability properties. The choice between methods depends on the specific problem’s characteristics.

Performance Comparison: 1000-Year Integration¶

Testing on Earth’s orbit (eccentricity $e = 0.017$, period = 365.25 days):

Leapfrog with only second-order accuracy outperforms fourth-order RK4 for long-term stability!

When to Use Symplectic Methods¶

Simple Example: Pendulum Dynamics¶

Let’s see symplectic integration in action with a nonlinear pendulum:

import numpy as np

def pendulum_leapfrog(theta0, omega0, g, L, h, n_steps):
    """
    Integrate pendulum with leapfrog
    Preserves energy for nonlinear oscillations
    """
    theta, omega = theta0, omega0
    energies = []

    for _ in range(n_steps):
        # Initial energy
        E = 0.5*L**2*omega**2 - g*L*np.cos(theta)
        energies.append(E)

        # Leapfrog update
        omega_half = omega - 0.5*h*(g/L)*np.sin(theta)
        theta_new = theta + h*omega_half
        omega_new = omega_half - 0.5*h*(g/L)*np.sin(theta_new)

        theta, omega = theta_new, omega_new

    return energies

The energy remains bounded even for large amplitude oscillations where linearization fails!

Bridge to Part 4: Stability Analysis¶

You’ve seen the profound difference between local accuracy and geometric preservation. Symplectic methods sacrifice pointwise precision for global stability, keeping simulations physically meaningful over cosmic timescales.

But choosing the right integrator is only part of the challenge. We also need to understand when methods become unstable, how to diagnose problems, and what limits our timestep choices. In Part 4, we’ll analyze stability regions to predict when methods explode and understand the special challenges of stiff equations.

Next: Part 4 - Stability Analysis
