Lecture 3: The Universe Is Weird — Nuclear Fusion and the Four Forces
What keeps a star hot, and why does it require quantum mechanics?
Guiding question: If the Sun’s core is “only” about \(1.5 \times 10^7 \ \mathrm{K}\) relative to the MeV-scale barrier problem, why does fusion happen at all?
Learning Objectives
After completing this reading, you should be able to:
- Use the stellar-composition mass fractions \((X, Y, Z)\) and explain how hydrogen burning changes them.
- Explain which of the four fundamental forces matters at each stage of stellar fusion.
- Calculate the Coulomb-barrier energy scale for two protons and compare it with the solar-core thermal energy scale.
- Calculate a de Broglie wavelength and explain why wave behavior matters in stellar cores.
- Explain how tunneling and the weak interaction together make the pp-chain possible and slow.

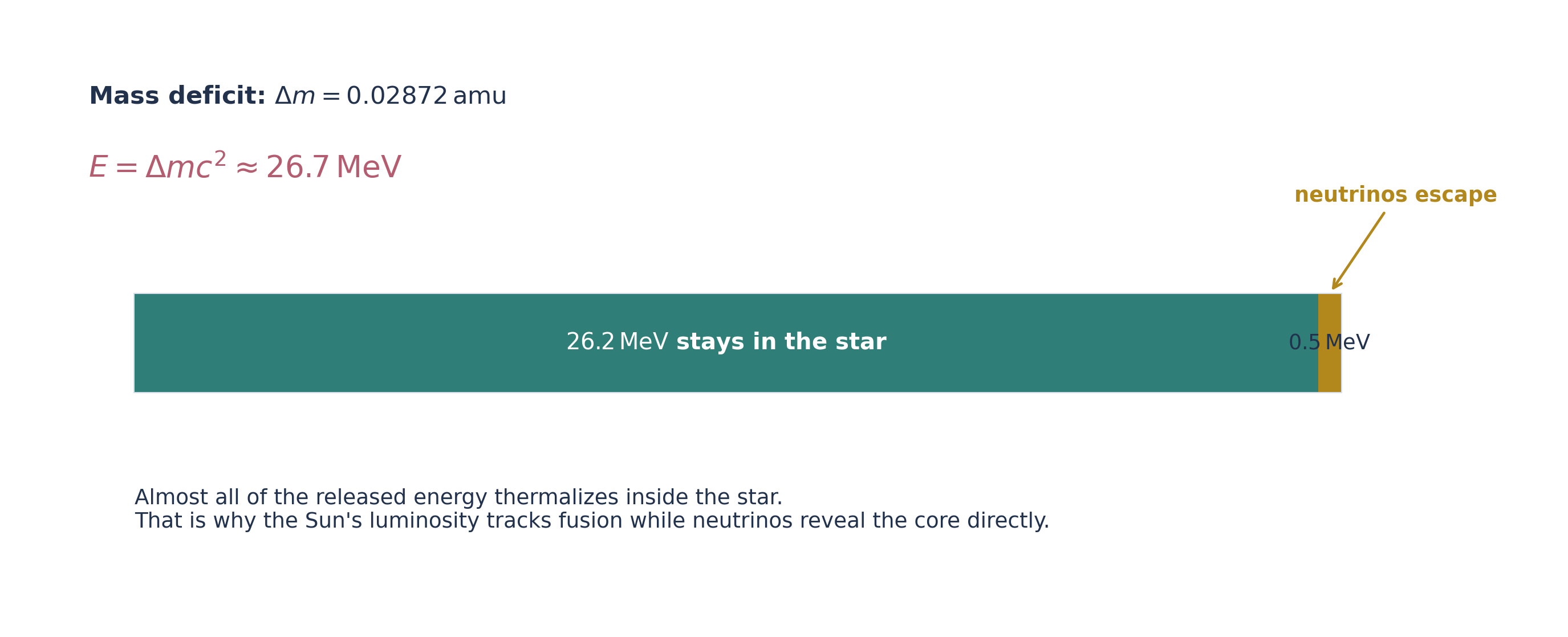

- Use atomic masses to compute the energy released per net pp-chain reaction from \(E = \Delta m c^2\).

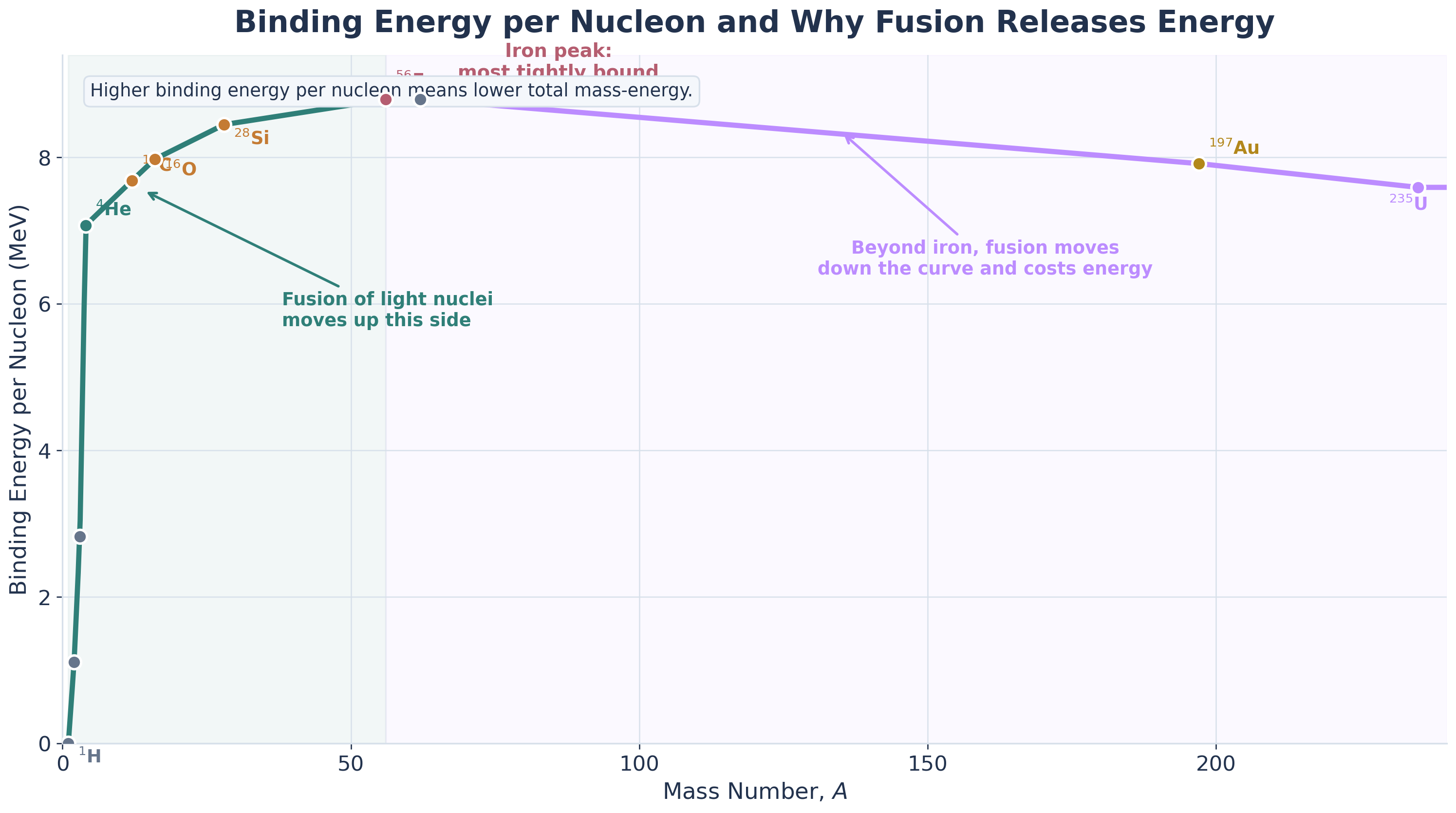

- Interpret the binding-energy-per-nucleon curve and explain why fusion is exothermic only up to the iron/nickel region.
Concept Throughline
Gravity can make stars hot, but not classically hot enough. Reading 2 showed that hydrostatic equilibrium naturally gives a solar-core temperature of order \(10^7 \ \mathrm{K}\). This reading asks why that still fails for classical proton-proton fusion, how quantum mechanics changes the answer, why the first reaction is slow, where the released energy comes from, and why the whole process eventually runs out of exothermic fuel near the iron/nickel region.
- Gravity compresses the stellar core.
- Electromagnetism creates the Coulomb barrier.
- A classical thermal gas should fail to cross that barrier.
- Quantum tunneling allows rare close approaches anyway.
- The weak interaction throttles the first pp reaction.
- The strong interaction binds nucleons once they are close enough for nuclear forces to dominate over Coulomb repulsion.
- The mass deficit powers the star.
- Exothermic fusion ends near the iron/nickel region.
Track A (Core, ~30 min): Read Parts 1–6 in order. Skip any box marked Enrichment.

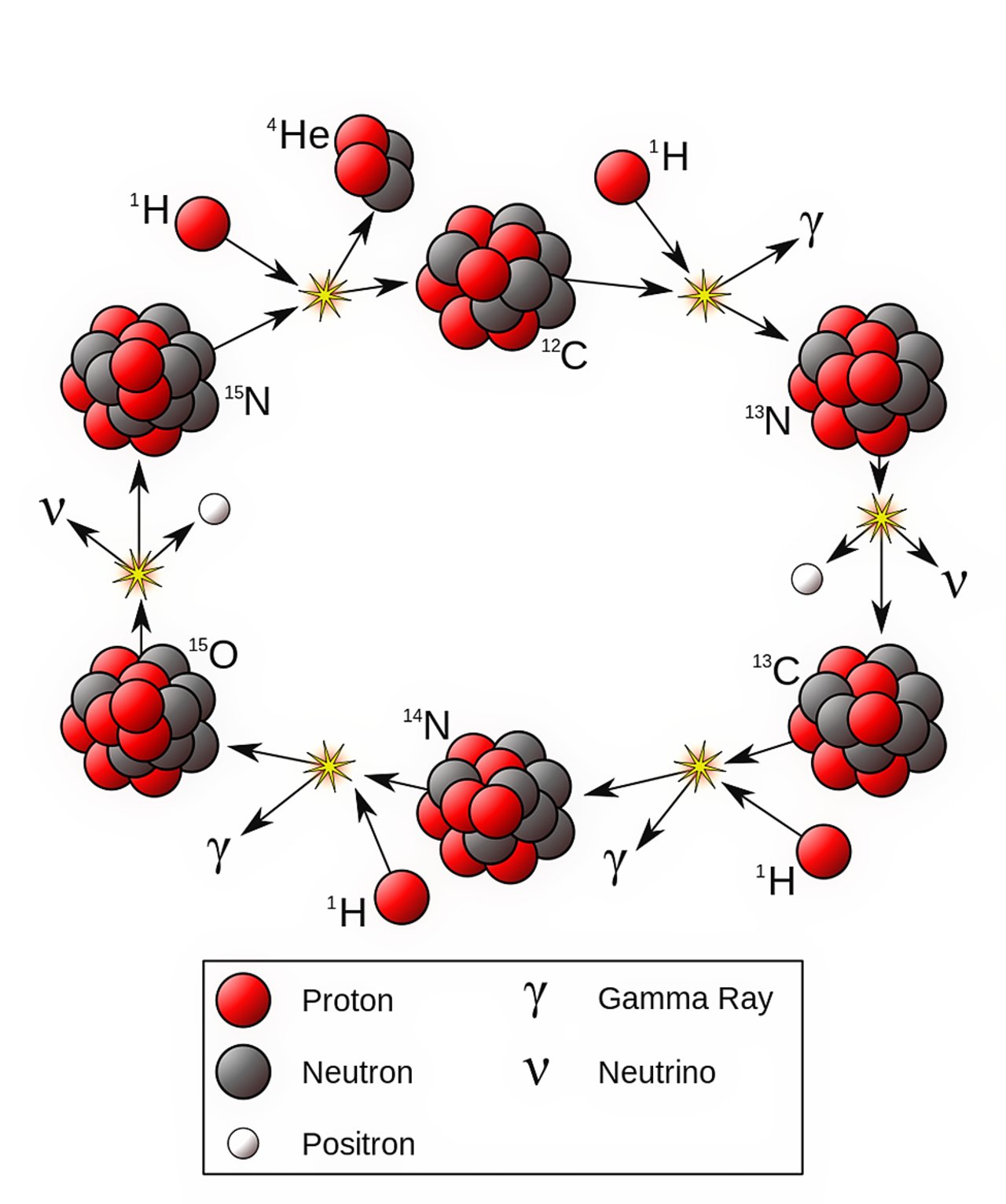

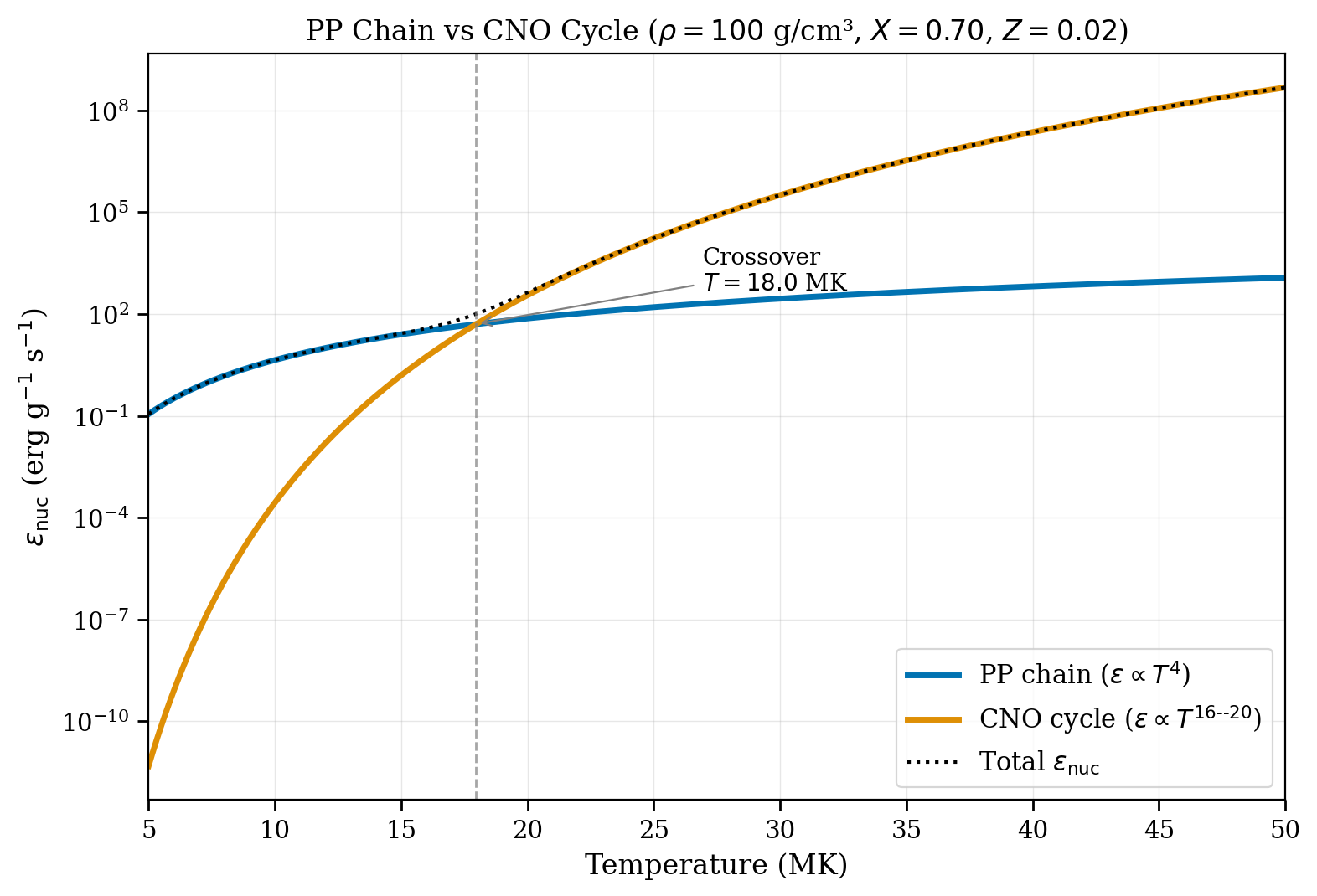

Track B (Full, ~40 min): Read everything, including the pp-versus-CNO comparison and the synthesis table at the end.
Both tracks cover the core learning objectives.

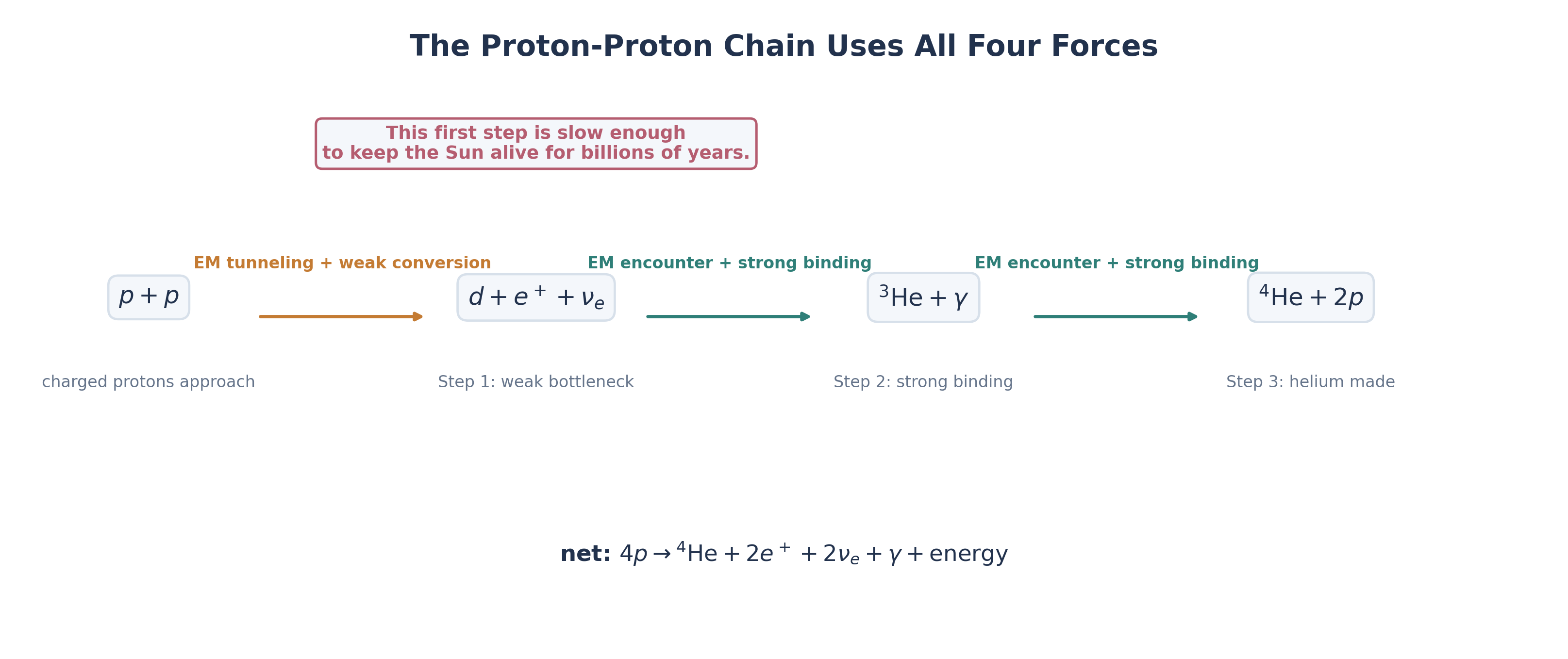

A star shines because one physical story threads together all four fundamental forces:
- gravity compresses the core,
- electromagnetism creates the Coulomb barrier,
- the weak interaction converts a proton into a neutron during the first pp reaction,
- the strong interaction binds nucleons once they are close enough for nuclear forces to dominate over Coulomb repulsion.
Without quantum tunneling, gravity would still fail to make ordinary main-sequence fusion happen.
Part 1: Which Force Matters Where?
Students often memorize the names of the four forces without having a clear picture of where each one matters. For stellar fusion, the cleanest map is a scale-based one. Gravity dominates the whole star. Electromagnetism dominates the approach of charged nuclei. The strong force matters only when nuclei are extremely close. The weak force matters when one particle type must change into another.
| Physical scale or stage | Main actor | Job in this reading |
|---|---|---|
| Whole star | gravity | compresses the gas and sets the core temperature and density scale |
| Charged-particle encounter | electromagnetism | creates Coulomb repulsion between nuclei |
| Nuclear distance, \(r \sim 10^{-13} \ \mathrm{cm}\) | strong interaction | binds nucleons once they are close enough |
| Proton-to-neutron conversion in Step 1 | weak interaction | enables deuterium formation in the pp-chain |
What to notice: each force dominates a different part of the fusion problem. Gravity sets the whole-star conditions, electromagnetism controls the charged encounter, and the weak and strong interactions matter only once the particles reach nuclear scales. (Credit: ASTR 201 (generated))
This table is why gravity can be the global winner even though it is the weakest microscopic force. The strong interaction is enormously powerful, but only at nuclear distances. Electromagnetism has infinite range, but positive and negative charges tend to cancel on large scales. Gravity has infinite range, always attracts, and never cancels. A star contains such a huge amount of mass that the cumulative effect of gravity sets the stage for everything else.
A visual tour of the four forces

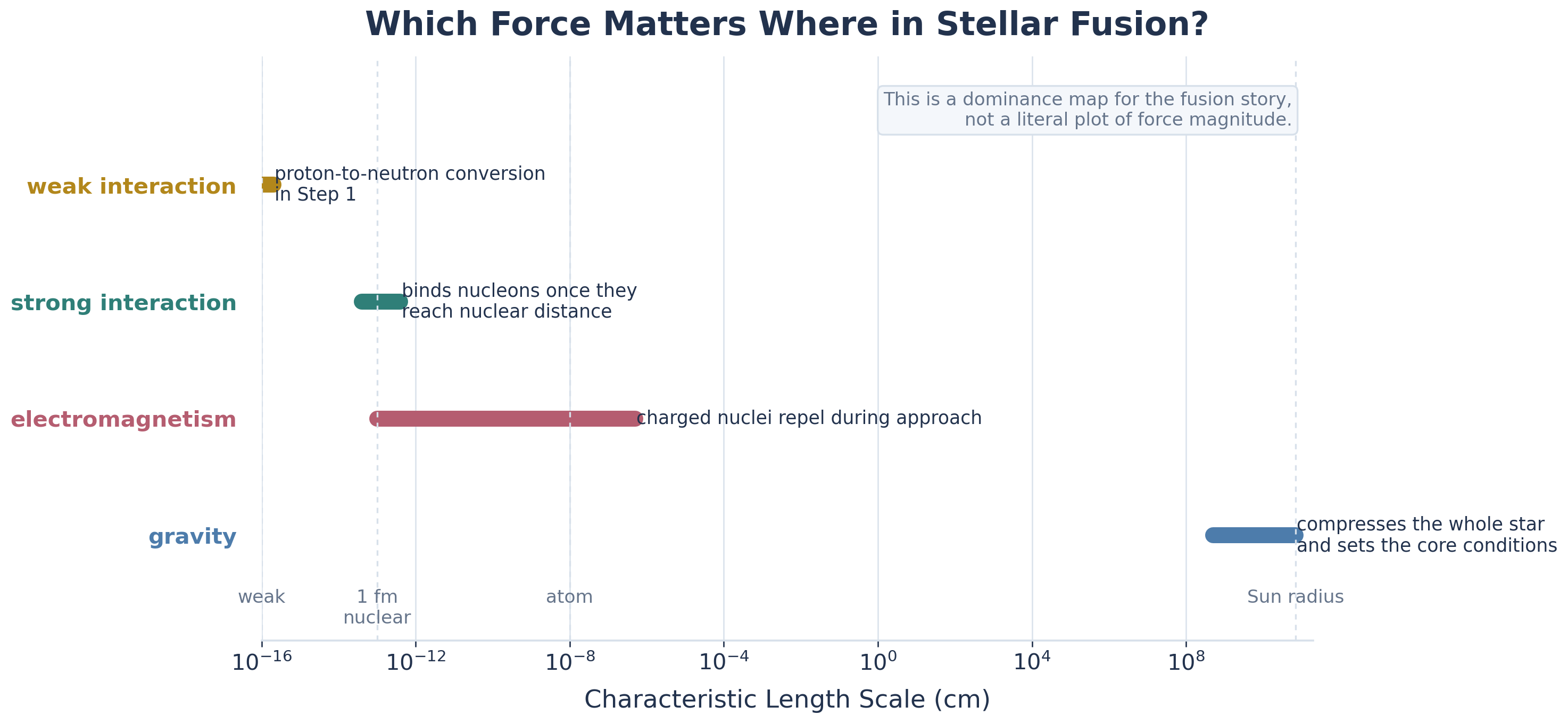

The scale map above is the core reasoning tool. The four figures below are a different kind of help: they give each force a visual identity so students can connect the abstract names to concrete physical roles.

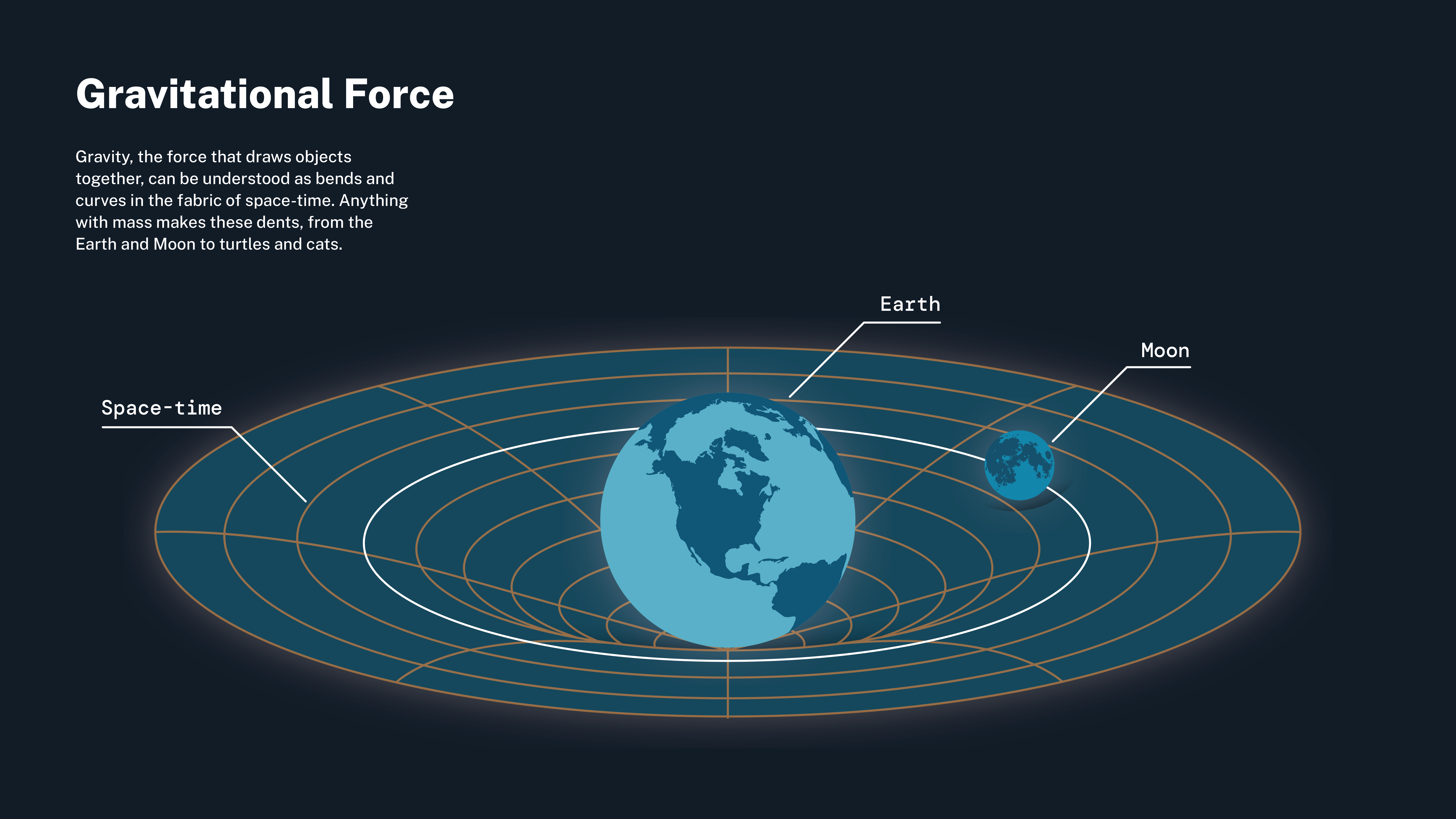

Gravity — the weakest force, but infinite in range and always attractive. Mass curves spacetime, creating the ‘dents’ that draw objects together. (Credit: NASA)

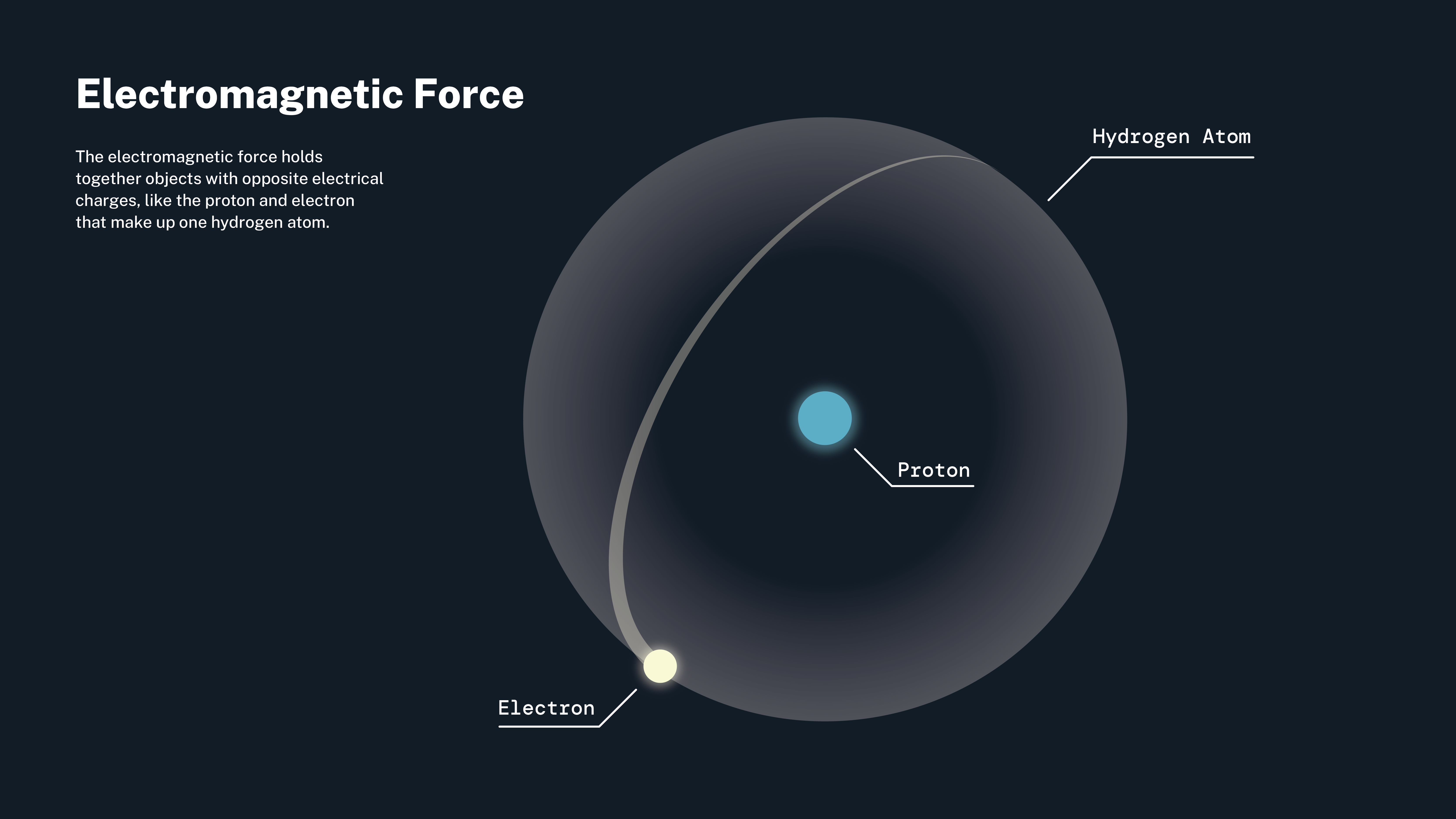

Electromagnetic force — holds atoms together and creates the Coulomb barrier that resists nuclear fusion in stellar cores. (Credit: NASA)

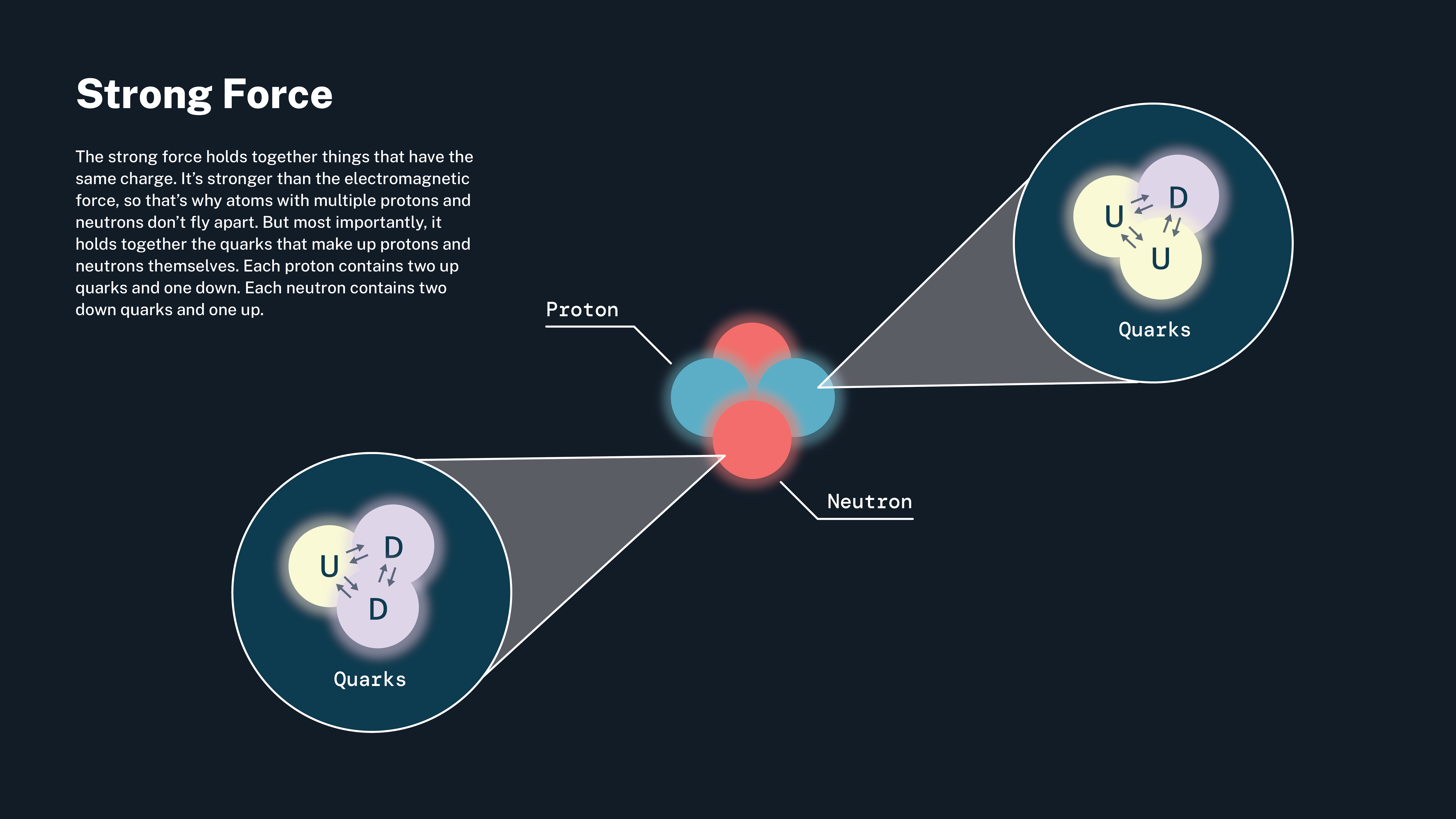

Strong nuclear force — the strongest force in nature, but acts only at nuclear distances (~10⁻¹³ cm). It binds quarks into protons and neutrons, and binds nucleons into nuclei. (Credit: NASA)

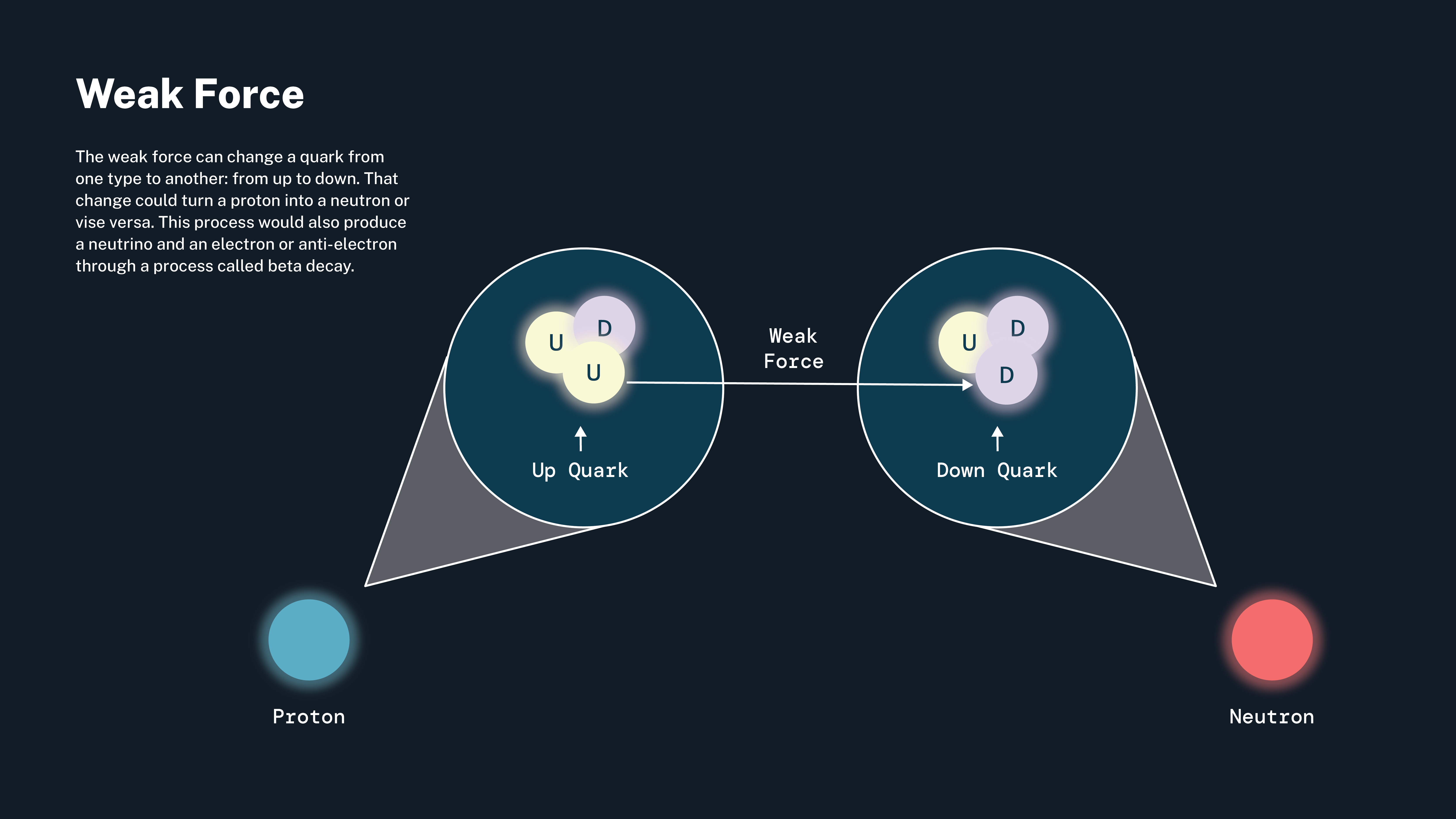

Weak nuclear force — enables transmutation between particle types. In the proton-proton chain, one proton is converted into a neutron through the weak interaction during the reaction \(p + p \rightarrow d + e^+ + \nu_e\). This weak conversion is the bottleneck that makes solar hydrogen burning slow. (Credit: NASA)
Enrichment: Where these forces live in particle physics

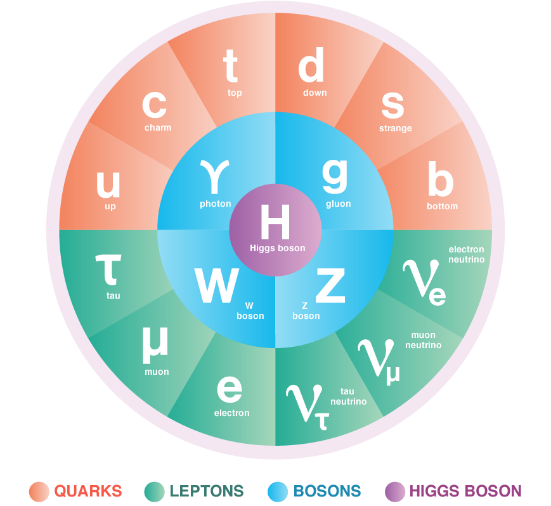

The Standard Model of particle physics organizes all known fundamental particles. Quarks (orange) make up protons and neutrons via the strong force. Leptons (green) include the electron and three types of neutrino. Bosons (blue) carry the forces: photons (EM), gluons (strong), W/Z bosons (weak), and the Higgs. Stellar physics uses all four forces — gravity is not included in the Standard Model because it is described by general relativity. (Credit: DOE/Fermilab)
The Standard Model includes the electromagnetic, weak, and strong interactions, plus the particles that feel them. Gravity is the outsider here: it matters enormously in stars, but it is not part of the Standard Model because it is described instead by general relativity.
Why does gravity dominate the structure of stars even though it is vastly weaker than the strong and electromagnetic forces in a proton-proton encounter?
Gravity acts between every pair of masses, has infinite range, and never cancels. The strong force is much stronger, but it matters only when particles are essentially touching. Electromagnetism also has infinite range, but opposite charges largely cancel on macroscopic scales. So gravity wins globally even though it loses microscopically.
Part 2: Why Classical Fusion Should Fail
Reading 2 gave us a solar-core temperature of roughly
\[ T_c \approx 1.5 \times 10^7 \ \mathrm{K}. \]
We now test whether classical physics can explain fusion.
That sounds hot, but the crucial question is not “Is it hot?” The real question is “Is it hot enough to force two positively charged protons to nuclear distance?” Classically, the answer is no.
Before doing any arithmetic, commit to a prediction: is the Coulomb barrier
- slightly larger than the solar-core thermal energy,
- about \(10\times\) larger,
- about \(1000\times\) larger?
The Coulomb barrier (order-of-magnitude head-on estimate)
For fusion to happen, two protons must get close enough for the strong interaction to matter, at about
\[ r_{\rm nuc} \sim 1 \ \mathrm{fm} = 10^{-13} \ \mathrm{cm}. \]
In Gaussian CGS units, the electrostatic potential energy of two protons separated by a distance \(r\) is
\[ E_{\rm C}(r) = \frac{e^2}{r}, \]
with
\[ e = 4.803 \times 10^{-10} \ \mathrm{esu}. \]
This expression gives a head-on, order-of-magnitude estimate of the barrier scale. Real encounters span a range of impact parameters and closest-approach distances, so the Coulomb barrier is not a single perfectly sharp threshold.
This is worth a unit check. In Gaussian CGS units, \(e^2\) carries units of \(\mathrm{erg \, cm}\), so
\[ \left[\frac{e^2}{r}\right] = \frac{\mathrm{erg \, cm}}{\mathrm{cm}} = \mathrm{erg}. \]
So the expression really is an energy, which means it can be compared directly with the thermal energy of the gas.
Why must \(e^2/r\) have units of energy rather than force or voltage?
In Gaussian CGS units, \(e^2\) already carries units of \(\mathrm{erg \, cm}\). Dividing by a length removes the extra \(\mathrm{cm}\) and leaves \(\mathrm{erg}\), so \(e^2/r\) is an energy scale.
Now evaluate the barrier at nuclear distance:
\[ E_{\rm C}(r_{\rm nuc}) \approx \frac{e^2}{10^{-13} \ \mathrm{cm}} \approx \frac{(4.803 \times 10^{-10} \ \mathrm{esu})^2}{10^{-13} \ \mathrm{cm}}. \]
First square the charge:
\[ (4.803 \times 10^{-10})^2 \approx 2.31 \times 10^{-19}. \]
Then divide by \(10^{-13} \ \mathrm{cm}\):
\[ E_{\rm C}(r_{\rm nuc}) \approx \frac{2.31 \times 10^{-19} \ \mathrm{erg \, cm}}{10^{-13} \ \mathrm{cm}} = 2.31 \times 10^{-6} \ \mathrm{erg}. \]
Convert to \(\mathrm{MeV}\) using
\[ 1 \ \mathrm{MeV} = 1.602 \times 10^{-6} \ \mathrm{erg}. \]
So
\[ E_{\rm barrier} \approx \frac{2.31 \times 10^{-6} \ \mathrm{erg}}{1.602 \times 10^{-6} \ \mathrm{erg/MeV}} \approx 1.44 \ \mathrm{MeV}. \]
This is an order-of-magnitude barrier estimate, not a universal exact threshold for every collision geometry. The important point is the scale: the barrier is of order \(\mathrm{MeV}\).
The solar-core thermal scale
Known:
- solar-core temperature \(T_c\),
- Boltzmann constant \(k_B\),
- barrier scale from the Coulomb estimate.
Goal:
- compare the thermal energy scale with the barrier scale.
Strategy:
- compute \(k_B T\),
- convert to \(\mathrm{keV}\),
- compare with the \(\mathrm{MeV}\) barrier.
The Boltzmann constant is
\[ k_B = 1.38 \times 10^{-16} \ \mathrm{erg \, K^{-1}}. \]
At the solar-core temperature,
\[ k_B T_c = (1.38 \times 10^{-16} \ \mathrm{erg \, K^{-1}}) (1.5 \times 10^7 \ \mathrm{K}) = 2.07 \times 10^{-9} \ \mathrm{erg}. \]
Convert this to electron-volts:
\[ k_B T_c \approx \frac{2.07 \times 10^{-9} \ \mathrm{erg}}{1.602 \times 10^{-12} \ \mathrm{erg/eV}} \approx 1.29 \times 10^3 \ \mathrm{eV} = 1.29 \ \mathrm{keV}. \]
For a monatomic gas, the mean kinetic energy is
\[ \langle E \rangle = \frac{3}{2} k_B T. \]
So the mean proton kinetic energy in the solar core is
\[ \langle E \rangle \approx \frac{3}{2}(1.29 \ \mathrm{keV}) \approx 1.94 \ \mathrm{keV}. \]
The quantity \(k_B T\) sets the characteristic energy scale of the distribution, while \(\langle E \rangle = \frac{3}{2}k_B T\) is the mean kinetic energy for a monatomic gas. Using either one leaves the same conclusion: both are of order \(\mathrm{keV}\), far below the \(\mathrm{MeV}\)-scale Coulomb barrier.
The mismatch
Now compare the two scales directly:
\[ E_{\rm barrier} \approx 1.44 \ \mathrm{MeV} = 1440 \ \mathrm{keV}, \]
while
\[ k_B T_c \approx 1.29 \ \mathrm{keV}. \]
Therefore,
\[ \frac{E_{\rm barrier}}{k_B T_c} \approx \frac{1440 \ \mathrm{keV}}{1.29 \ \mathrm{keV}} \approx 1.1 \times 10^3. \]
The Coulomb barrier is about a thousand times larger than the thermal scale. That is not a near miss. It is a complete classical failure.
If you expected the barrier to be only “a bit larger” than the thermal energy, that intuition fails dramatically. The Sun is not classically close to proton-proton fusion. It is off by about three orders of magnitude.

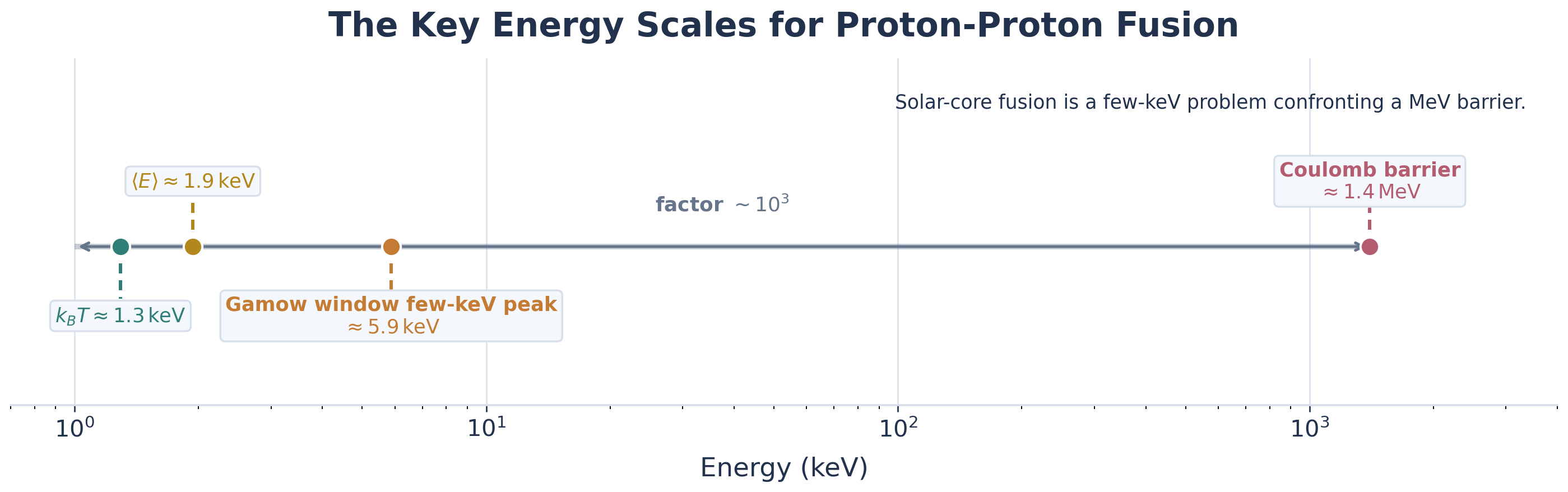

What to notice: the key proton-fusion energies are not close together. The thermal scale and the Gamow-window peak live at a few keV, while the Coulomb barrier is around \(1.4\,\mathrm{MeV}\) — about a thousand times larger. (Credit: ASTR 201 (generated))

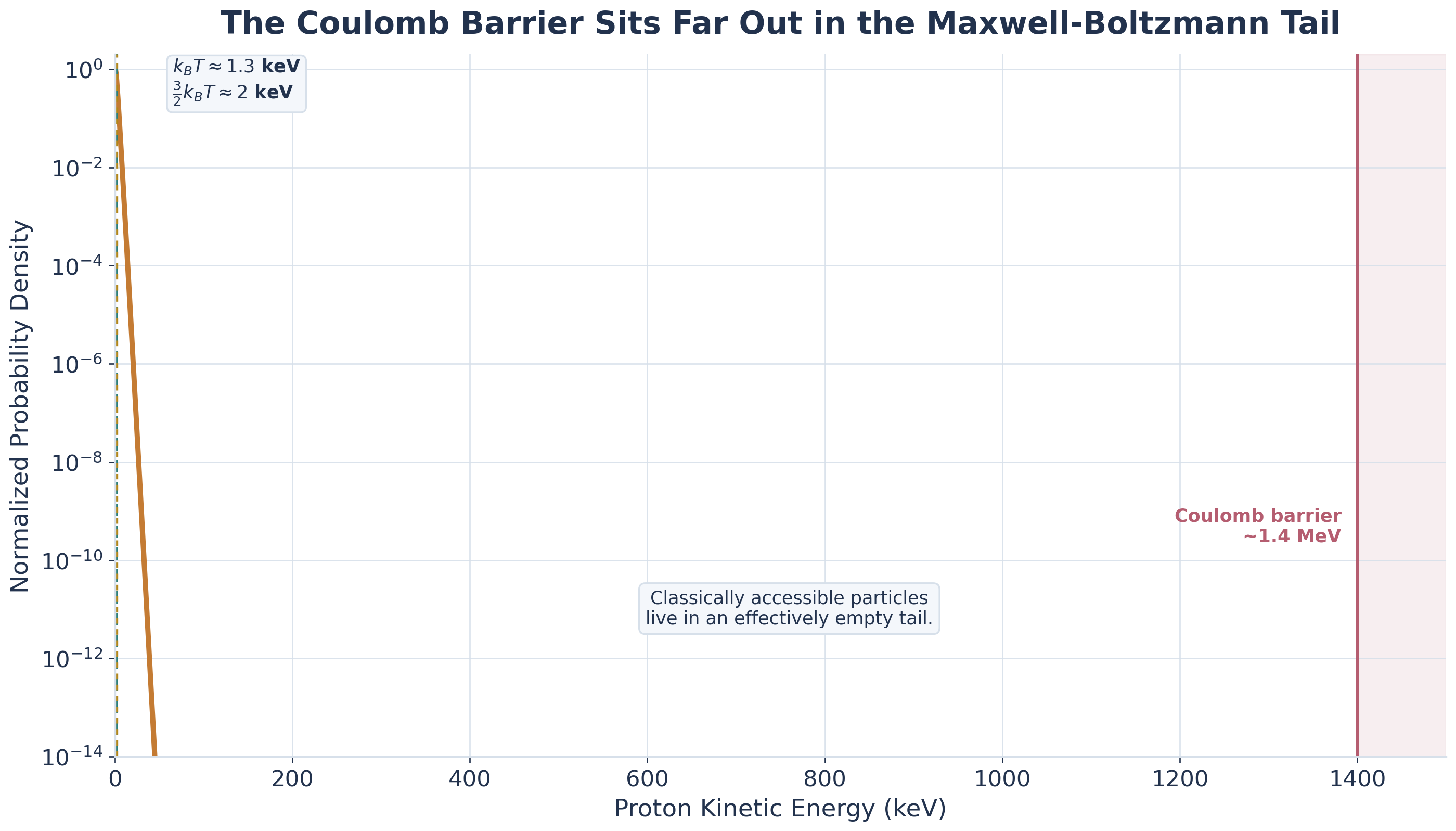

What to notice: the Coulomb barrier sits far out in the Maxwell-Boltzmann tail. A few-keV thermal scale and a MeV barrier are so far apart that classical fusion is effectively impossible. (Credit: ASTR 201 (generated))
The classical tail estimate
If the barrier sits about \(10^3\) thermal scales above \(k_B T\), should the classical tail fraction be
- merely small,
- tiny but still astrophysically useful,
- effectively zero?
If the gas were purely classical, a rough estimate for the fraction of particles with energies at or above the barrier would be
\[ f \sim e^{-E_{\rm barrier}/k_B T_c}. \]
Using the ratio above,
\[ f \sim e^{-1100}. \]
That is effectively zero for any astrophysical purpose.
The classical tail is not giving us a slow version of fusion. It gives us essentially no fusion at all. That is why the next step in the story must be a genuinely new physical mechanism.
The Coulomb barrier is about \(10^3\) times larger than \(k_B T\).
- If the temperature increased by a factor of 10, would classical fusion become viable?
- Roughly how hot would the core need to be for \(k_B T \sim \mathrm{MeV}\)?
Even a factor of 10 increase only raises the characteristic thermal scale to about \(10 \ \mathrm{keV}\), still far below the \(\mathrm{MeV}\) barrier.
To make \(k_B T\) itself of order \(\mathrm{MeV}\) requires
\[ T \sim 10^{10} \ \mathrm{K}. \]
So classical fusion is not “almost working.” It is orders of magnitude off.
Classical vs Quantum Suppression
| Effect | Expression | Physical meaning |
|---|---|---|
| Thermal rarity | \(e^{-E/k_B T}\) | high-energy particles are rare in the thermal distribution |
| Tunneling suppression | \(e^{-\sqrt{E_G/E}}\) | low-energy particles penetrate the barrier poorly |
These are different physical effects. The Boltzmann factor tells you how many high-energy particles exist. The tunneling factor tells you how hard it is for a particle of a given energy to penetrate the barrier.
Suppose the core temperature doubled. What happens qualitatively to:
- \(k_B T\)
- the Boltzmann tail
- the tunneling probability for typical collisions
If \(T\) doubled, then \(k_B T\) would double, so the characteristic thermal energy scale would move upward. The Boltzmann tail would become much less suppressed, meaning energetic collisions would be far less rare. Typical collisions would also occur at higher energies, so the tunneling suppression would weaken. All three effects push the fusion rate upward.
“Fusion happens because particles get hot enough to overcome the barrier.”
False. The solar core is not hot enough for classical barrier crossing. Fusion occurs because quantum tunneling allows rare barrier penetration.
Set the mean kinetic energy equal to the barrier energy:
\[ \frac{3}{2} k_B T \approx 1.44 \ \mathrm{MeV}. \]
Estimate the temperature required for classical fusion. Is that a plausible core temperature for an ordinary main-sequence star?
Solve for \(T\):
\[ T \approx \frac{2E_{\rm barrier}}{3k_B}. \]
Using \(E_{\rm barrier} = 2.31 \times 10^{-6} \ \mathrm{erg}\),
\[ T \approx \frac{2(2.31 \times 10^{-6} \ \mathrm{erg})}{3(1.38 \times 10^{-16} \ \mathrm{erg \, K^{-1}})} \approx 1.1 \times 10^{10} \ \mathrm{K}. \]
So classical fusion would require a temperature of order \(10^{10} \ \mathrm{K}\), not \(10^7 \ \mathrm{K}\). Ordinary main-sequence stars do not reach that regime. Classical physics fails here.
Part 3: What Quantum Mechanics Changes
The Sun does not solve the fusion problem by getting classically hot enough. It solves the problem by leaving classical physics behind.
If classical physics fails, we need a new mechanism.
What to notice: the quantum part of the fusion story is a causal chain, not a list. Classical fusion fails because the Coulomb barrier is too high, wave behavior removes the exact-trajectory picture, tunneling allows rare close approaches, and the weak interaction then sets the overall rate. (Credit: ASTR 201 (generated))
Particles are also waves
\[ \lambda_{\mathrm{dB}} = \frac{h}{p} = \frac{h}{mv} \tag{1}\]
de Broglie wavelength
What it predicts
Given a particle's momentum \(p\) (or mass \(m\) and velocity \(v\)), it predicts the spatial scale over which the particle behaves like a wave.
What it depends on
Scales as \(\lambda \propto 1/p\). Higher momentum means a shorter wavelength and more localized, more classical-looking behavior. Lower momentum means a longer wavelength and a more spatially extended, less classically localized state.
What it's saying
A particle is not just a tiny hard sphere. When its de Broglie wavelength is not tiny compared with the physical scale of the problem, the classical trajectory picture fails and we must use wave mechanics instead.
Assumptions
- Non-relativistic if we rewrite momentum as \(p = mv\)
- Single particle (not a composite system)
See: the equation
This equation matters because a proton in the solar core cannot be treated as a tiny hard sphere following one exact path. The relevant question is whether its wavelength is large enough for wave behavior to matter on the scale of the barrier problem.
We are not introducing this equation as a mathematical curiosity. We are introducing it because classical physics has already failed.
The Coulomb barrier is of order \(\mathrm{MeV}\), while the thermal scale in the solar core is only of order \(\mathrm{keV}\).
So the question becomes: what new physical mechanism allows fusion to happen anyway?
The de Broglie relation gives the first part of the answer. Protons are not point particles. They are extended wave-like objects, and that is what makes tunneling possible.
Worked example: the de Broglie wavelength of a solar-core proton
Take a characteristic proton energy equal to the mean thermal energy:
\[ E \approx \frac{3}{2} k_B T_c \approx 1.94 \ \mathrm{keV}. \]
Convert that to CGS units using
\[ 1 \ \mathrm{eV} = 1.602 \times 10^{-12} \ \mathrm{erg}. \]
Then
\[ \begin{aligned} E &\approx \left(1.94 \times 10^3 \ \mathrm{eV}\right) \left(1.602 \times 10^{-12} \ \mathrm{erg/eV}\right) \\ &\approx 3.11 \times 10^{-9} \ \mathrm{erg}. \end{aligned} \]
Now use the non-relativistic kinetic-energy relation
\[ E = \frac{1}{2} m_p v^2, \qquad m_p = 1.67 \times 10^{-24} \ \mathrm{g}. \]
Solve for the speed:
\[ \begin{aligned} v &= \sqrt{\frac{2E}{m_p}} \\ &\approx \sqrt{ \frac{2\left(3.11 \times 10^{-9} \ \mathrm{erg}\right)} {1.67 \times 10^{-24} \ \mathrm{g}} } \\ &= \sqrt{ \frac{2\left(3.11 \times 10^{-9} \ \mathrm{g \, cm^2 \, s^{-2}}\right)} {1.67 \times 10^{-24} \ \mathrm{g}} } \\ &\approx \sqrt{3.73 \times 10^{15} \ \mathrm{cm^2 \, s^{-2}}} \\ &\approx 6.11 \times 10^7 \ \mathrm{cm \, s^{-1}}. \end{aligned} \]
\[ \frac{\mathrm{erg}}{\mathrm{g}} = \frac{\mathrm{g \, cm^2 \, s^{-2}}}{\mathrm{g}} = \mathrm{cm^2 \, s^{-2}}. \]
Taking the square root gives \(\mathrm{cm \, s^{-1}}\), as required for a velocity.
Since \(\lambda = h/p\), the key quantity is the momentum \(p = m_p v\). We compute \(v\) from the thermal energy to determine \(p\), and therefore \(\lambda\).
Now compute the wavelength:
\[ \begin{aligned} \lambda_{\rm dB} &= \frac{h}{m_p v} \\ &\approx \frac{6.626 \times 10^{-27} \ \mathrm{erg \, s}} {\left(1.67 \times 10^{-24} \ \mathrm{g}\right) \left(6.11 \times 10^7 \ \mathrm{cm \, s^{-1}}\right)} \\ &= \frac{6.626 \times 10^{-27} \ \mathrm{g \, cm^2 \, s^{-1}}} {1.02 \times 10^{-16} \ \mathrm{g \, cm \, s^{-1}}} \\ &\approx 6.5 \times 10^{-11} \ \mathrm{cm}. \end{aligned} \]
Compare that with the nuclear scale:
\[ r_{\rm nuc} \sim 10^{-13} \ \mathrm{cm}. \]
So
\[ \begin{aligned} \frac{\lambda_{\rm dB}}{r_{\rm nuc}} &\approx \frac{6.5 \times 10^{-11} \ \mathrm{cm}} {10^{-13} \ \mathrm{cm}} \\ &\approx 6.5 \times 10^2. \end{aligned} \]
The de Broglie wavelength is hundreds of times larger than the nuclear distance scale. That does not mean fusion is easy. It means classical barrier crossing is no longer the right language for the problem.
What to notice: the solar-core proton’s de Broglie wavelength is hundreds of times larger than the nuclear scale. That is why the proton cannot be treated as a tiny classical bead at the barrier. (Credit: ASTR 201 (generated))
Interpretation of the de Broglie wavelength
\[ \frac{\lambda_{\rm dB}}{r_{\rm nuc}} \sim 10^2 - 10^3 \]
This is not a small correction to classical motion. It is a complete breakdown of the classical picture.
A proton is not localized at a point near the barrier. It is spread over a region hundreds of times larger than the nuclear scale. That means:
- there is no single trajectory,
- there is no single turning point in the classical sense,
- the correct description is inherently nonlocal.
So the question changes. We no longer ask, “Does the particle have enough energy to cross the barrier?” We ask, “What is the amplitude of the wave inside and beyond the barrier?”
The uncertainty principle and why localization fails
The de Broglie relation does not just say “particles have wavelengths.” It tells us that momentum sets the spatial scale of the wave description.
This idea leads directly to the uncertainty principle:
Because a wave cannot be both perfectly localized and have a single wavelength, position and momentum cannot both be sharply defined.
\[ \Delta x \, \Delta p \gtrsim \frac{\hbar}{2}. \]
Here \(\Delta x\) is the spread in position, \(\Delta p\) is the spread in momentum, and \(\hbar\) is the reduced Planck constant, which sets the quantum scale. This tradeoff is not an independent rule. It is a direct consequence of describing particles as waves.
This is not an extra rule layered on top of wave behavior. A wave that is tightly localized in space must contain many wavelengths and therefore many momenta. A wave with one well-defined momentum must be spread out in space.
What to notice: a tightly localized wave packet must contain many wavelengths and therefore a broad momentum spread. A broad packet is less localized in space but has a narrower momentum spread. This is why the uncertainty principle is a wave-packet tradeoff, not a measurement failure. This figure is a schematic wave-packet comparison, not a direct measurement. (Credit: ASTR 201 (generated))
Higher momentum means a shorter wavelength and more localized, more classical-looking behavior. Lower momentum means a longer wavelength and more spatial spread. Solar-core protons live in a regime where that spread cannot be ignored.
The deepest break from classical physics is not just that particles have wavelengths. It is that a particle cannot be both perfectly localized and have a perfectly defined momentum.
So the classical idea of “a particle following one exact path through space” is not approximately wrong here. It is fundamentally invalid.
If you try to confine a proton to an extremely tiny region, the uncertainty principle forces a large spread in momentum. That means a wide range of possible velocities, not one sharply defined incoming path. Once we accept that the proton is described by a wave spread over a finite region, the barrier problem has to be asked in wave language rather than point-particle language.
“The uncertainty principle means we just do not know the proton’s true position well enough.”
No. This is not merely a measurement problem. It is a statement about the structure of the quantum state itself: the proton cannot simultaneously have both a perfectly exact position and a perfectly exact momentum.
Suppose you try to confine a proton to a region of size
\[ \Delta x \sim 10^{-13} \ \mathrm{cm}. \]
- What must happen to \(\Delta p\)?
- What does that imply about the range of possible velocities?
- Why does this make a single classical trajectory impossible?
From
\[ \Delta x \, \Delta p \gtrsim \frac{\hbar}{2}, \]
making \(\Delta x\) very small forces \(\Delta p\) to become very large.
That means:
- the proton cannot have one well-defined momentum,
- it must contain a wide range of velocities,
- its motion cannot be described by a single path.
So the classical trajectory picture breaks down completely.
A proton in the solar core has \(E \sim \mathrm{keV}\), far below the \(\mathrm{MeV}\) barrier.
Using both the de Broglie relation and the uncertainty principle, explain why:
- the classical trajectory picture fails,
- tunneling becomes the correct description.
The de Broglie relation tells us that a low-momentum proton has a wavelength that is large compared with nuclear scales, so it cannot be treated as a tiny classical point particle. The uncertainty principle then tells us that a state cannot have both a perfectly sharp position and a perfectly sharp momentum, so there is no single exact path toward the barrier.
Once the proton is described as a spatially extended wave rather than a localized bead, the barrier problem must be asked in wave language. The wavefunction can extend into the classically forbidden region and decay there, so tunneling becomes the correct description.
What to notice: classical motion predicts a sharp turning point and reflection, while the quantum wavefunction extends into and through the barrier. The barrier is no longer an absolute boundary. This is a schematic wavefunction, not an exact solution to the Schrodinger equation. (Credit: ASTR 201 (generated))
Tunneling
In classical mechanics, a particle with energy below the barrier reflects.
But that statement assumes a perfectly localized particle with a single trajectory. Quantum mechanics has already removed that assumption. The proton is described by a wavefunction spread over a finite region. That wave does not abruptly stop at the classical turning point.
Because the proton is not localized at a single point, the barrier cannot act as an absolute boundary.
Instead,
- it extends into the classically forbidden region,
- it decays exponentially there,
- and it can remain nonzero beyond the barrier.
So the correct statement is: the proton does not “hit a wall.” Its wavefunction has nonzero amplitude inside and beyond the classically forbidden region. That is quantum tunneling.
Tunneling is therefore not a literal hole in the barrier, not a small missing patch in the force field, and not a story about a proton “borrowing” the needed energy. It is a wave-mechanics result.
A student says, “The proton finds a crack in the barrier.”
That language is wrong because the barrier does not have a literal crack. The correct idea is that the proton’s wavefunction extends into the classically forbidden region, so there is a small but nonzero amplitude beyond the barrier. It is also not correct to say the proton “borrows energy.” The energy stays sub-barrier; what changes is the quantum-mechanical probability of barrier penetration.
The Gamow window
If low-energy particles are common but tunnel poorly, and high-energy particles tunnel well but are rare, where should most fusion events come from?
- right near the average thermal energy,
- only from the very highest-energy tail,
- from a narrow middle overlap region?
Fusion does not happen at the average thermal energy. It happens in a narrow energy range where two competing effects overlap:
- higher-energy particles are rarer because of the Maxwell-Boltzmann factor,
- higher-energy particles tunnel more easily because the tunneling suppression is weaker.
Schematically, the rate contribution at energy \(E\) behaves like
\[ \text{rate contribution at energy } E \propto e^{-E/k_B T} \, e^{-\sqrt{E_G/E}}, \]
where the first factor describes thermal rarity and the second encodes tunneling suppression. Here \(E_G\) is the Gamow energy scale: a convenient way of packaging how hard a given pair of nuclei is to tunnel through the Coulomb barrier. It depends on the nuclear charges, the reduced mass, and Planck’s constant, so it is larger for reactions with bigger Coulomb barriers.
Their product peaks at an intermediate energy called the Gamow window.
What to notice: low-energy collisions are common but tunnel poorly, while high-energy collisions tunnel better but are rare. Most fusion comes from the narrow overlap where those two effects balance. This is a schematic weighting diagram, not an exact cross-section calculation. (Credit: ASTR 201 (generated))
Classical physics fails because the barrier is far too large.
Classical physics fails not because the Sun is slightly too cold, but because the underlying model of particles as localized trajectories is wrong at these scales.
Quantum mechanics fixes the possibility problem by allowing tunneling.
But we still do not have the rate right, because we have not yet asked what makes a successful pp reaction so rare.
True or false: most fusion reactions occur at the average thermal energy \(k_B T\).
Explain your reasoning before you calculate anything.
False. Low-energy collisions are common, but they tunnel poorly. High-energy collisions tunnel better, but they are rare. Fusion happens mostly in the narrow middle window where those two effects overlap. The relevant energy is therefore not the mean thermal energy alone.
Why the Sun still burns slowly
Once tunneling allows rare close approaches, what do you expect to be the real bottleneck?
- not enough collisions,
- not enough tunneling events,
- not enough successful weak conversions?
Tunneling makes fusion possible, but it does not make fusion easy. The first step of the pp-chain is
\[ p + p \rightarrow d + e^+ + \nu_e. \]
That reaction requires more than a close encounter. One proton must change into a neutron, and that conversion is controlled by the weak interaction.
So the hierarchy is:
- proton-proton collisions are common,
- only a tiny fraction tunnel to very small separations,
- only a still smaller fraction complete the weak conversion needed to make deuterium.
That is why the Sun can experience enormous numbers of collisions while still burning hydrogen slowly enough to last billions of years.
“The Sun’s lifetime is set mainly by how often protons collide.”
False. Proton collisions are abundant. Even tunneling-enabled close approaches happen vastly more often than successful proton-to-neutron conversions. The true bottleneck is the weak-interaction transformation, not the existence of collisions.
Tunneling makes fusion possible. The weak interaction makes it slow.
The Sun is not hot enough to fuse hydrogen classically.
It only appears to succeed because quantum mechanics allows rare close approaches, and the weak interaction meters those successes out slowly enough for a long stellar lifetime.
Part 4: The Proton-Proton Chain
Now that close approach is possible, what actually happens next?
In the Sun, the dominant hydrogen-burning pathway is the proton-proton chain.
Net reaction
\[ 4\,{}^1\text{H} \rightarrow {}^4\text{He} + 2\,e^+ + 2\,\nu_e + \gamma \tag{2}\]
Proton-proton chain (net reaction)
What it predicts
The net products and energy released when four protons fuse to helium.
What it depends on
Requires conditions: \(T \gtrsim 10\) MK, \(\rho \gtrsim 100\) g/cm³.
What it's saying
Four hydrogen nuclei become one helium-4 nucleus plus two positrons, two neutrinos, and 26.7 MeV of released energy. The mass deficit is converted into energy.
Assumptions
- Dominant pathway in stars with \(M \lesssim 1.3\,M_\odot\)
- CNO cycle dominates for more massive (hotter) stars
- Rate limited by Step 1 (requires weak force + tunneling)
See: the equation
The positrons quickly annihilate with electrons in the plasma, and the neutrinos escape. The rest of the released energy thermalizes in the stellar interior.
Problem solved so far:
- gravity made the core hot,
- classical thermal motion failed,
- tunneling allowed close approach,
- the weak interaction set the pace.
What remains is the energy question: if fusion happens, why does the star get usable energy out of it?
Step-by-step chain
Step 1: Make deuterium
\[ p + p \rightarrow d + e^+ + \nu_e \]
This is the slow bottleneck.
Electromagnetism creates the barrier, tunneling makes the close approach possible, the weak interaction converts one proton into a neutron during the reaction, and the strong interaction binds the proton-neutron pair into deuterium.
Students should not picture a free proton spontaneously decaying all by itself. The correct statement is that during the reaction
\[ p + p \rightarrow d + e^+ + \nu_e, \]
one proton is converted into a neutron through the weak interaction.
Step 2: Capture another proton
\[ d + p \rightarrow {}^3\mathrm{He} + \gamma \]
Once deuterium exists, this step proceeds quickly. The charged particles must still approach through Coulomb repulsion, but no weak conversion is required.
Step 3: Build helium-4
\[ {}^3\mathrm{He} + {}^3\mathrm{He} \rightarrow {}^4\mathrm{He} + 2p \]
Again the nuclei must overcome or tunnel through Coulomb repulsion, and once they are close enough the strong interaction binds the nucleons into the final helium-4 nucleus.
What to notice: the proton-proton chain needs all four forces. Electromagnetism creates the barrier, tunneling permits close approach, the weak force throttles Step 1, and the strong force binds nucleons into nuclei once they are close enough.
The force-labeled schematic above answers the question, “Which physics matters where?” The more traditional reaction-network view below answers a different question: “Where do the particles go?” It makes the duplicated deuterium-forming branches, the emitted neutrinos and gamma rays, and the return of two protons in the last step easier to track.
What to notice: this textbook-style pp-chain diagram makes the particle bookkeeping explicit. Two deuterium-forming branches feed into helium-3 production, and the chain closes when two helium-3 nuclei fuse to make helium-4 and return two protons.
Composition bookkeeping: \(X\), \(Y\), and \(Z\)
Astronomers often describe stellar composition using three mass fractions:
| Symbol | Meaning | Typical solar value today |
|---|---|---|
| \(X\) | hydrogen mass fraction | \(\approx 0.70\) |
| \(Y\) | helium mass fraction | \(\approx 0.28\) |
| \(Z\) | mass fraction of everything heavier than helium | \(\approx 0.02\) |
Because they are mass fractions,
\[ X + Y + Z = 1. \]
On the main sequence, the dominant composition change in the core is
\[ X \rightarrow Y, \]
because hydrogen is being turned into helium. The quantity \(Z\) matters too, but mostly indirectly here: it affects opacity, structure, and which hydrogen-burning pathway dominates at higher temperatures.
Which is rarer in the step that sets the Sun’s lifetime: a tunneling-enabled close approach, or a successful weak conversion that actually makes deuterium?
Tunneling-enabled close approaches are already rare, but a successful weak conversion is rarer still. That is why the first pp reaction is the bottleneck and why the weak interaction largely determines the main-sequence lifetime.
Observable \(\rightarrow\) Model \(\rightarrow\) Inference
- Observable: solar neutrinos are detected on Earth.
- Model: the pp-chain predicts both the existence and characteristic energies of those neutrinos.
- Inference: the Sun’s energy source is nuclear fusion in its core.
This is one of astronomy’s cleanest examples of inferring the physics of an invisible interior from particles that reach us directly.
Part 5: Where the Fusion Energy Comes From
Even if fusion happens, why does it release energy?
Fusion does not release energy because nuclei “want” to glow. It releases energy because the products have less rest mass than the reactants.
“Fusion releases energy because the nuclei smash into each other violently.”
False. Violence is not the energy source. The energy comes from the mass deficit: the bound products have less rest mass than the separated reactants.
The mass deficit
For the net hydrogen-to-helium conversion, it is convenient to use atomic masses. That keeps the electron bookkeeping clean when comparing neutral hydrogen atoms with a neutral helium atom.
| Quantity | Mass |
|---|---|
| \(4 \times {}^1\mathrm{H}\) | \(4 \times 1.00783 = 4.03132 \ \mathrm{amu}\) |
| \({}^4\mathrm{He}\) | \(4.00260 \ \mathrm{amu}\) |
So the mass deficit is
\[ \Delta m = 4.03132 \ \mathrm{amu} - 4.00260 \ \mathrm{amu} = 0.02872 \ \mathrm{amu}. \]
The fractional mass loss is
\[ \frac{\Delta m}{4.03132 \ \mathrm{amu}} \approx 0.00712 \approx 0.71\%. \]
That missing mass becomes released energy.
\[ E = \Delta m \, c^2 \tag{3}\]
Mass-energy equivalence (fusion)
What it predicts
Given a mass deficit \(\Delta m\), it predicts the energy released.
What it depends on
Scales as \(E \propto \Delta m\). The constant \(c^2\) is enormous: \(9 \times 10^{20}\) erg/g.
What it's saying
Mass and energy are equivalent. The 0.7% mass deficit in hydrogen fusion powers every main-sequence star.
Assumptions
- Special relativity
- \(\Delta m\) is the difference between reactant and product rest masses
See: the equation
Energy from mass deficit
First convert the mass deficit to grams:
\[ \Delta m = (0.02872 \ \mathrm{amu})(1.661 \times 10^{-24} \ \mathrm{g/amu}) \approx 4.77 \times 10^{-26} \ \mathrm{g}. \]
This calculation is also a good place to keep the dimensional chain visible:
\[ \mathrm{amu} \rightarrow \mathrm{g} \rightarrow \mathrm{erg} \rightarrow \mathrm{MeV}. \]
Now compute the energy:
\[ E = \Delta m c^2 = (4.77 \times 10^{-26} \ \mathrm{g})(3.00 \times 10^{10} \ \mathrm{cm \, s^{-1}})^2. \]
Square the speed of light:
\[ c^2 = 9.00 \times 10^{20} \ \mathrm{cm^2 \, s^{-2}}. \]
Then
\[ E \approx (4.77 \times 10^{-26})(9.00 \times 10^{20}) \ \mathrm{g \, cm^2 \, s^{-2}} \approx 4.29 \times 10^{-5} \ \mathrm{erg}. \]
Because
\[ 1 \ \mathrm{erg} = 1 \ \mathrm{g \, cm^2 \, s^{-2}}, \]
the units are consistent.
Convert to \(\mathrm{MeV}\):
\[ E \approx \frac{4.29 \times 10^{-5} \ \mathrm{erg}}{1.602 \times 10^{-6} \ \mathrm{erg/MeV}} \approx 26.8 \ \mathrm{MeV}. \]
To the usual quoted precision,
\[ E \approx 26.7 \ \mathrm{MeV}. \]
You can also use the direct conversion
\[ 1 \ \mathrm{amu} = 931.5 \ \mathrm{MeV}/c^2. \]
Then
\[ \Delta m c^2 = (0.02872 \ \mathrm{amu})(931.5 \ \mathrm{MeV}/c^2)c^2 \approx 26.7 \ \mathrm{MeV}. \]
What to notice: the pp-chain releases about \(26.7\,\mathrm{MeV}\) per net reaction, but only about \(0.5\,\mathrm{MeV}\) escapes in neutrinos. Almost all of the energy stays in the star and powers the luminosity. (Credit: ASTR 201 (generated))
How much stays in the star?
Not all of that energy heats the Sun. The neutrinos escape almost immediately and carry away a small fraction, roughly
\[ \sim 0.5 \ \mathrm{MeV} \]
per net reaction on average. So the energy retained in the stellar interior is roughly
\[ 26.7 \ \mathrm{MeV} - 0.5 \ \mathrm{MeV} \approx 26.2 \ \mathrm{MeV}. \]
What to notice: fusion energy is born in the core, mostly stays in the star, and only later escapes as luminosity. The neutrino channel leaves quickly, but the photon energy must thermalize and diffuse outward through the stellar interior. (Credit: ASTR 201 (SVG))
The retained energy does not instantly appear at the stellar surface. It thermalizes in the dense plasma and then diffuses outward through the stellar interior before eventually emerging as luminosity.
The pp-chain is not just a reaction network. It is also an energy-conversion pipeline:
- weak + strong + electromagnetic physics build helium,
- the mass deficit sets the released energy,
- neutrinos escape,
- the rest thermalizes and eventually powers the luminosity.
Part 6: Why Fusion Stops Releasing Energy
Why does fusion stop being useful?
The hydrogen-to-helium story is part of a larger nuclear pattern. Fusion releases energy only when it moves nuclei toward higher binding energy per nucleon, which means lower total mass-energy.
Binding energy
For a nucleus with \(Z\) protons and \(N\) neutrons,
\[ E_{\rm bind} = (Z m_p + N m_n - m_{\rm nucleus})c^2. \]
The binding energy per nucleon is
\[ \frac{E_{\rm bind}}{A}, \qquad A = Z + N. \]
This quantity tells us, on average, how tightly bound each nucleon is.
At the start of the reading, \(Z\) meant the stellar metal mass fraction. In nuclear physics, \(Z\) means proton number. The symbol is the same, but the meaning depends on context.
The binding-energy-per-nucleon curve
If fusion means combining smaller nuclei into larger ones, should it always release energy?
Commit before you look at the curve.
Light nuclei have relatively low binding energy per nucleon. As you move toward intermediate-mass nuclei, the binding energy per nucleon rises. The curve reaches its broad maximum in the iron/nickel peak.
Representative values are:
| Nucleus | Binding energy per nucleon |
|---|---|
| \({}^1\mathrm{H}\) | \(0 \ \mathrm{MeV}\) |
| \({}^4\mathrm{He}\) | \(\approx 7.1 \ \mathrm{MeV}\) |
| iron/nickel region | \(\approx 8.7\) to \(8.8 \ \mathrm{MeV}\) |
What to notice: moving upward on the binding-energy curve means moving to a lower total mass-energy. That is why fusion releases energy up to the broad iron/nickel peak, while fusion beyond that region costs energy. (Credit: ASTR 201 (generated))
For nuclei lighter than the iron/nickel region, fusion usually moves matter upward on this curve, so energy is released. Beyond that region, further fusion would move nuclei downward in binding energy per nucleon, so energy must be supplied instead. That is why ordinary exothermic stellar fusion stops near iron.
“Fusion always releases energy because it always makes a bigger nucleus.”
False. The relevant quantity is not whether the nucleus gets bigger. It is whether the products land at higher binding energy per nucleon. Beyond the iron/nickel region, bigger can actually mean less tightly bound per nucleon.
A massive star has already burned hydrogen to helium and helium to carbon and oxygen. If it starts fusing carbon, is energy still released? What about iron?
Carbon fusion can still release energy because carbon lies well below the iron/nickel region in binding energy per nucleon. Iron is different: nuclei near the iron/nickel region are already among the most tightly bound, so further fusion is generally endothermic. That is why an iron core cannot support a star by ordinary exothermic fusion.
Enrichment: The CNO Cycle and Temperature Sensitivity
In Sun-like stars, the pp-chain dominates hydrogen burning. In hotter, more massive stars, the CNO cycle dominates instead. The net result is still hydrogen turning into helium, but the pathway is different and the temperature sensitivity is much steeper.
The CNO cycle is best thought of as a catalytic loop. Carbon, nitrogen, and oxygen nuclei participate in the intermediate steps, but the cycle returns to carbon-12 at the end. So the heavy nuclei help process the protons without being consumed in the net reaction.
What to notice: the CNO cycle is a catalytic loop. Carbon-12 is restored at the end, while four protons are effectively turned into one helium-4 nucleus plus gamma rays, positrons, and neutrinos.
The key question is not whether both pathways exist in principle. The real question is: which pathway wins under a given set of core conditions? At lower core temperatures, the pp-chain dominates. At higher core temperatures, the much steeper temperature sensitivity of the CNO cycle allows it to overtake pp burning, provided carbon, nitrogen, and oxygen nuclei are present.
Near solar-core conditions, a standard pedagogical approximation is
\[ \epsilon_{\rm pp} \propto T^4. \]
For CNO burning, a common rule of thumb is
\[ \epsilon_{\rm CNO} \propto T^{16 \text{ to } 20}. \]
That difference matters. The Sun’s pp burning is temperature-sensitive enough for negative feedback, but it is not CNO-like in its steepness. Once the core becomes hot enough, the CNO curve rises past the pp curve, and the dominant hydrogen-burning pathway changes.
What to notice: pp burning dominates in Sun-like cores, but the CNO cycle overtakes it once the core reaches roughly \(18\,\mathrm{MK}\). That crossover is why more massive main-sequence stars are powered by a different hydrogen-burning pathway.
The figure is not just comparing two reaction rates. It is showing a handoff in stellar control.
- To the left of the crossover, pp burning dominates, so Sun-like stars are powered mainly by the pp-chain.
- To the right of the crossover, CNO dominates, so hotter, more massive stars are powered mainly by the CNO cycle.
Same fuel. Same net result. Different pathway, different temperature sensitivity, and therefore different stellar behavior.
Suppose the core temperature increases by \(10\%\).
Predict the rough change in the energy-generation rate for:
- pp burning with \(\epsilon_{\rm pp} \propto T^4\)
- CNO burning with \(\epsilon_{\rm CNO} \propto T^{18}\)
Which burning mode responds more dramatically to a small temperature perturbation?
For pp burning,
\[ \left(1.10\right)^4 \approx 1.46, \]
so the rate rises by about \(46\%\).
For CNO burning,
\[ \left(1.10\right)^{18} \approx 5.6, \]
so the rate rises by about a factor of \(5\) to \(6\).
CNO burning responds much more dramatically to a small temperature increase, which is one reason massive-star cores have a different structure from the Sun’s core.
The first stars formed from the early Universe, whose composition after Big Bang nucleosynthesis was mostly hydrogen and helium with only trace lithium and essentially no carbon, nitrogen, or oxygen.
Could those first stars still undergo hydrogen fusion? If so, which pathway had to start the burning?
Yes. The first stars could still undergo hydrogen fusion because the pp-chain does not require carbon, nitrogen, or oxygen catalysts. So primordial stars had to begin hydrogen burning through the pp-chain.
That is the key inference: if there is no initial CNO material, the CNO cycle cannot be the pathway that starts hydrogen burning. In very massive Population III stars, once the core made even a trace amount of carbon, CNO burning could later take over because its temperature sensitivity is so steep. But the initial ignition problem is solved by the pp-chain.
Synthesis
Put the logic in order:
- Gravity compresses the stellar core and sets a temperature of order \(10^7 \ \mathrm{K}\).
- Electromagnetism creates a Coulomb barrier of order \(1 \ \mathrm{MeV}\).
- A classical thermal gas at solar-core temperatures should fail to cross that barrier.
- Quantum tunneling allows rare close approaches anyway.
- The weak interaction throttles the first pp reaction.
- The strong interaction binds nucleons once they are close enough for nuclear forces to dominate over Coulomb repulsion.
- The mass deficit becomes released energy through \(E = \Delta m c^2\).
- Fusion remains exothermic only up to the iron/nickel region.
Reference table: the pp-chain at a glance
| Step | Reaction | Dominant physics | Role in the timescale |
|---|---|---|---|
| 1 | \(p+p \rightarrow d + e^+ + \nu_e\) | tunneling + weak interaction + strong binding | slow bottleneck |
| 2 | \(d+p \rightarrow {}^3\mathrm{He} + \gamma\) | electromagnetic approach + strong binding | fast once deuterium exists |
| 3 | \({}^3\mathrm{He} + {}^3\mathrm{He} \rightarrow {}^4\mathrm{He} + 2p\) | electromagnetic approach + strong binding | completes the chain |
| net | \(4p \rightarrow {}^4\mathrm{He} + 2e^+ + 2\nu_e + 26.7 \ \mathrm{MeV}\) | all four forces matter in the full causal story | set mainly by Step 1 |
Practice Problems
Use these values unless a problem states otherwise:
- \(k_B = 8.617 \times 10^{-5}~\text{eV/K}\)
- \(1~\text{eV} = 1.602 \times 10^{-12}~\text{erg}\)
- \(1~\text{MeV} = 10^6~\text{eV}\)
- \(1~\text{amu} = 1.661 \times 10^{-24}~\text{g} = 931.5~\text{MeV}/c^2\)
- \(c = 3.0 \times 10^{10}~\text{cm/s}\)
- Solar-core temperature: \(T_c \approx 1.5 \times 10^7~\text{K}\)
- Head-on proton-proton barrier scale: \(E_{\text{barrier}} \approx 1.44~\text{MeV}\)
Conceptual
- ⭐ Why gravity wins globally.
- Why does gravity control stellar structure even though it is far weaker than the strong and electromagnetic forces in a proton-proton encounter?
- What feature of gravity matters most on stellar scales?
- Why does electromagnetism not simply dominate the whole star instead?
- ⭐⭐ Fusion does not happen at the average thermal energy.
- Why are low-energy proton collisions common but ineffective for fusion?
- Why are very high-energy collisions more effective but much rarer?
- Explain why the fusion rate is set by a narrow overlap between the thermal distribution and tunneling probability, not by the average value of \(k_B T\) alone.
- ⭐⭐ Tunneling makes fusion possible; the weak interaction makes it slow.
- What physical problem does quantum tunneling solve for proton-proton fusion?
- Why is the first step of the pp chain still extremely slow even after tunneling is allowed?
- In one sentence, state the true bottleneck that sets the Sun’s main-sequence lifetime.
Calculation
- ⭐⭐ Classical fusion should fail.
- Set \[ \frac{3}{2}k_B T \approx 1.44~\text{MeV} \] and estimate the temperature required for classical proton-proton barrier crossing.
- Compare your answer to the solar-core temperature.
- By what factor is the required classical temperature larger than the actual solar-core temperature?
- ⭐⭐ The pp-chain energy release. The net hydrogen-to-helium conversion has a mass deficit \[
\Delta m = 0.02872~\text{amu}.
\]
- Convert \(\Delta m\) to grams.
- Use \(E = \Delta m c^2\) to compute the released energy in ergs.
- Convert your answer to MeV.
- ⭐⭐ pp versus CNO temperature sensitivity. Suppose the core temperature rises by \(10\%\).
- If \(\epsilon_{\text{pp}} \propto T^4\), by what factor does the pp-chain rate change?
- If \(\epsilon_{\text{CNO}} \propto T^{18}\), by what factor does the CNO rate change?
- Which burning mode is more sensitive to a small temperature perturbation?
Synthesis
- ⭐⭐ Solar neutrinos as evidence.
- What is the direct observable in the solar-neutrino argument?
- What model connects that observable to the pp chain?
- In 2–4 sentences, explain why solar neutrinos are such strong evidence that the Sun’s power source is nuclear fusion in the core.
- ⭐⭐⭐ From mass deficit to the iron limit.
- Use the mass deficit \(\Delta m = 0.02872~\text{amu}\) to compute the net pp-chain energy release in MeV.
- Explain why hydrogen-to-helium fusion is exothermic in terms of binding energy per nucleon.
- Explain why carbon fusion can still release energy, but iron fusion cannot.
- The first stars formed with almost no carbon, nitrogen, or oxygen. Explain why they still could begin hydrogen burning.
Summary: All Four Forces, One Star
The central ideas from this reading are:
- Gravity alone can make stars hot, but not hot enough for classical proton-proton fusion.
- The Coulomb barrier is of order \(1 \ \mathrm{MeV}\), while the solar-core thermal scale is only of order \(1 \ \mathrm{keV}\).
- The Boltzmann tail explains why classical high-energy particles are rare; it is not the tunneling law.
- Quantum tunneling makes close approach possible, but the first pp reaction is still slow because it requires a weak-interaction proton-to-neutron conversion.
- A complete net pp-chain reaction releases about \(26.7 \ \mathrm{MeV}\), of which most stays in the star to power the luminosity.
- Fusion releases energy only while it moves nuclei upward in binding energy per nucleon, which is why exothermic stellar fusion ends near the iron/nickel region.
Fusion is not just “hot stuff colliding.” A star shines because gravity, electromagnetism, quantum mechanics, the weak interaction, and the strong interaction fit together into one logically connected physical story.
